Beschrijving AXAGON PCI-E 3 0 4x - M 2 SSD NVMe up to 80mm SSD passive cooler *PCIEM *M 2 ***

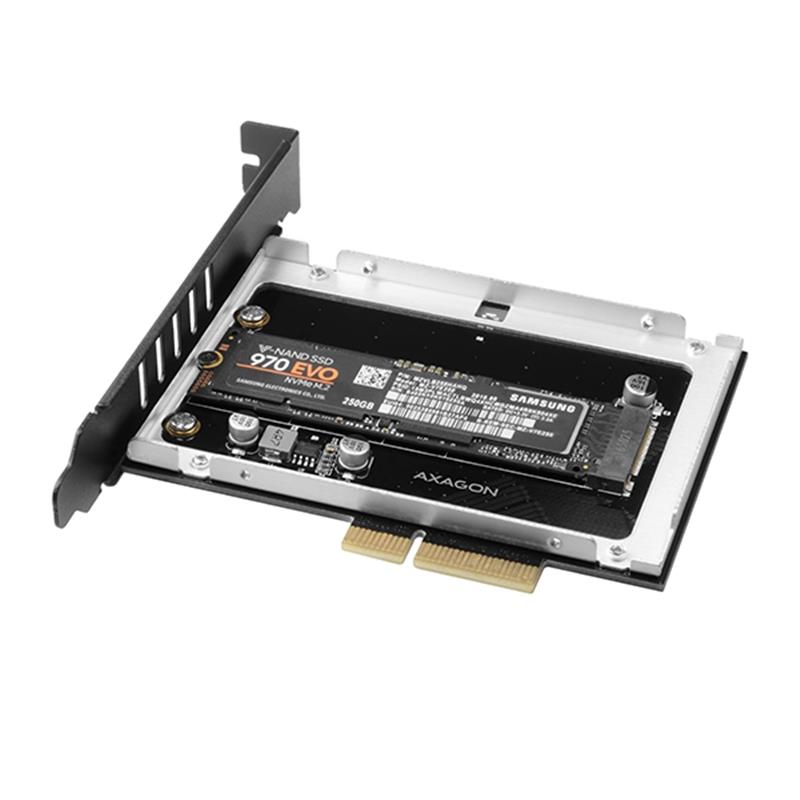

The AXAGON PCEM2-NC internal adapter allows connecting an M.2 SSD disk to a desktop computer using a PCI-Express bus.
Its high-quality workmanship, compact size, attractive design, and well thought-out cooling make this adapter an ideal choice for upgrading a desktop computer not equipped with an M.2 slot.
The adapter supports the use of NVMe (PCI-Express) M.2 SSD disks, both one-sided and double-sided ones. The reduction does not have a limit of SSD disk capacities and M.2 cards with dimensions of up to 22 x 80 mm can be used.
Due to the PCI-Express 3.0 4-lane interface rates of up to 8 GBps can be achieved. NVMe SSD disks have bit rates several times higher than those of standard SATA disks.
The aluminum cover working as a cooler and the attached thermally conductive pads help to cool the M.2 SSD disk. The result is an ideal combination of cooling and heat removal due to which the temperature of the M.2 SSD disk is reduced by up to 20 ?C.
The LED indication indicates connection and data transfer.
Input:
? PCI-Express 3.0 interface, compatible with PCI-Express 1.0a / 1.1 / 2.0 / 2.1.
? Number of 4-Lane lines, compatible with x4 / x8 / x16 PCIe slots.
? Bandwidth of 4-Lane PCI-Express 3.0 bus is up to 8 GB/s (two-way).
Output:
? NGFF 75-pin M-key slot for installing an NVMe (PCI-Express) M.2 SSD disk.
Other features:
? Full Plug and Play support.
? Support of M.2 disks of these sizes ? 2230, 2242, 2260, and 2280 mm.

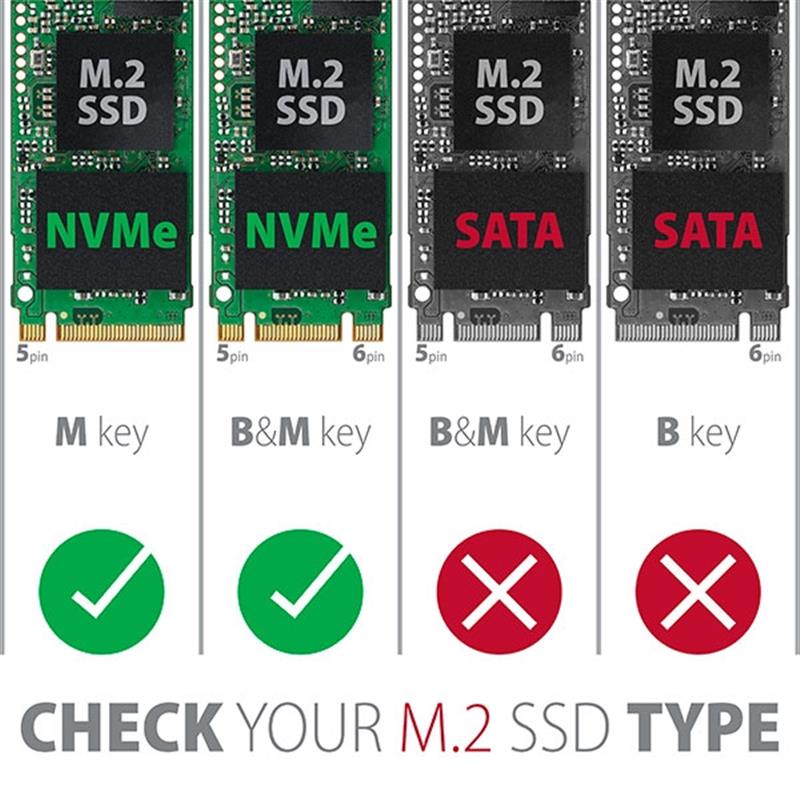

? Support of M key or B+M key NVMe (PCI-Express) M.2 SSD disks without a maximum capacity limit.
? Support of both one-sided and double-sided M.2 disks.
? Better heat removal due to the coppered vents, heat-conductive pads, and aluminum cover.
? Support of booting from an SSD card.
? Dimensions: 100 x 70 x 11 mm, weight: 69 g.
? The installation of drivers is not required.
Power supply:
? The adapter is supplied directly from a PCI-Express bus no external power supply is required.
Supported operating systems:
? MS Windows 7 / 8 / 8.1 / 10, Windows Server 2008 R2 / 2012 / 2016 (all 32- and 64-bit versions of Windows are supported), and Linux with kernel 2.6.31 and higher.
? Note: When Windows 7 is used, the support of this OS must be checked with the M.2 SSD disk manufacturer.
Package contains:
? PCI-Express adapter with a standard blanking plug and cover,
? 3 heat-conductive pads,
? Mounting material and a screwdriver,
? Printed installation manual in CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
? Packaged in a cardboard.
