G468-N1-V1807B40N0G Giada MiniPC barebone AMD Ryzen V1807B 4C 8T Vega 11 4 x HDMI 2 0 EDID 2 x DDR4 2400 SO-DIMM 1 x 2 5 SATA 1 x M 2 SSD slot 1 x M2 Wifi slot 1 x GigaBi

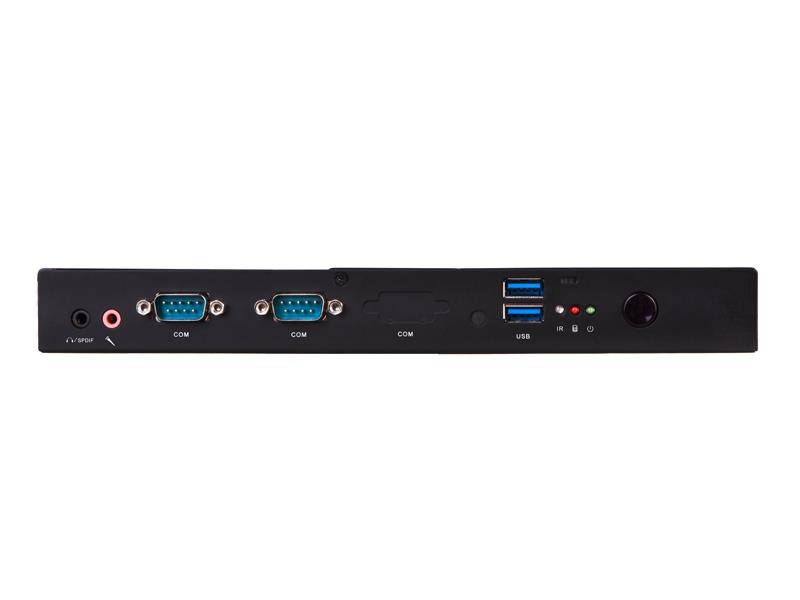

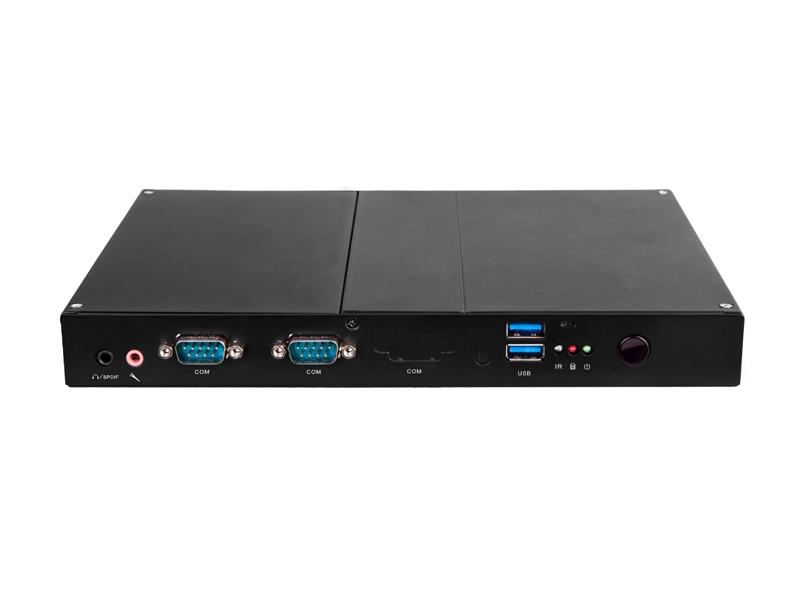

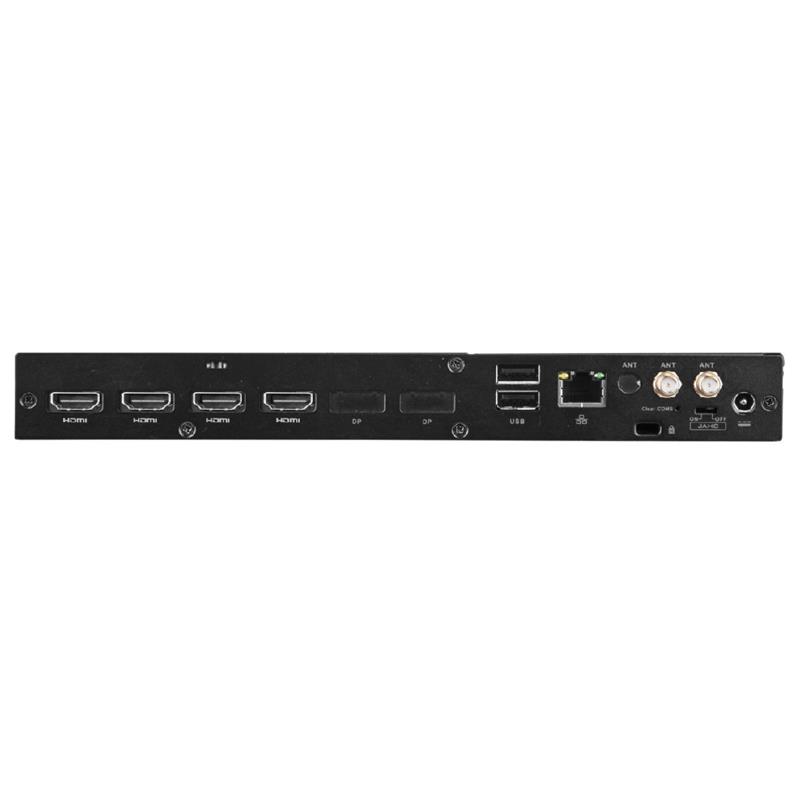

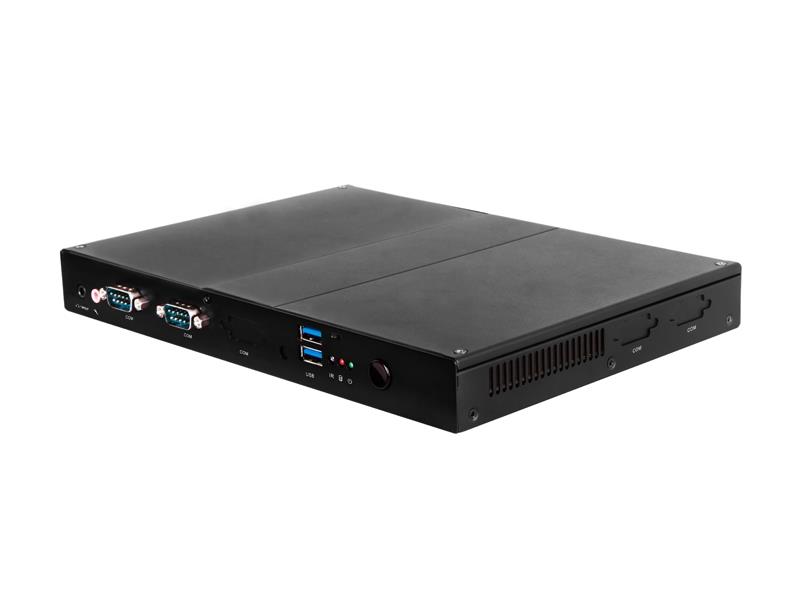

Giada G468-N1-V1807B4N0G
Belangrijkste eigenschappen
- AMD V1000 Platform Processors
- 2 x SO-DIMM DDR4-2400 MHz, Up to 32GB
- 4 x HDMI
- 1 x 2.5&rdquo SATA,1 x M.2(2242/2280) for SSD
- 3 x USB 3.0, 1 x USB 2.0,2 x RS232
- 1 x M.2(2230) for WiFi/BT

Specificaties
Processor
CPU: AMD Ryzen&trade V1807B
Frequency: 3.35GHz, 4 Cores / 8 Threads
BIOS: AMI Source Code
Chipset: SOC

Memory
Type: DDR4
Socket: 2 x SO-DIMM
Max Capacity: 32 GB

Graphics
GPU: Radeon&trade GPU 1.3 GHz
Graphic Engine: DirectX12, OpenGL4.4 and OpenCL 1.2
HDMI: HDMI (Max. 4096 x 2304 @60Hz)

Network
Controller: Realtek RTL8111H Gigabit Ethernet
Interface: 1 x RJ45

I/O Interface
USB: 3 x USB 3.0, 1 x USB 2.0
Serial Port: 2 x RS232
Audio: 1 x MIC-IN, 1 x AUDIO-OUT&SPDIF
M.2 (2230): 1 x M.2 for WIFI/BT
M.2 (2242/2280): 1 x M.2 for SSD

Storage
M.2 (2242/2280): 1 x M.2 for SSD
SATA: 1 x 2.5&rdquo SATA

JAHC Operation System
JAHC: Watchdog / Auto power on/IR Remote Control / RTC/Wake On Lan
OS: Windows 10(64-bit) / Linux

Power
Power Type: DC-IN
Input Voltage: 19V/4.74A

Mechanical
Construction: Metal
Mounting: Desk/VESA Mounting(JZ300)
Dimension (W x D x H): 240 mm x 175 mm x 28 mm
Color: Black

Environment
Operating Temperature: 0 - 40°C at 0.7m/s Air Flow
Relative Humidity: 95%@40°C (non-condensing)

Certification
Certification: CE, FCC Class B
