Beschrijving Giada MiniPC barebone D611 Intel core i3-1115G4 2C 4T 190x149x26mm UHD Graphics11 2x SO-DIMM DDR4 1x M 2 Storage 1 x M 2 WiFi 1x M 2 4G SIM slot 1xUSB

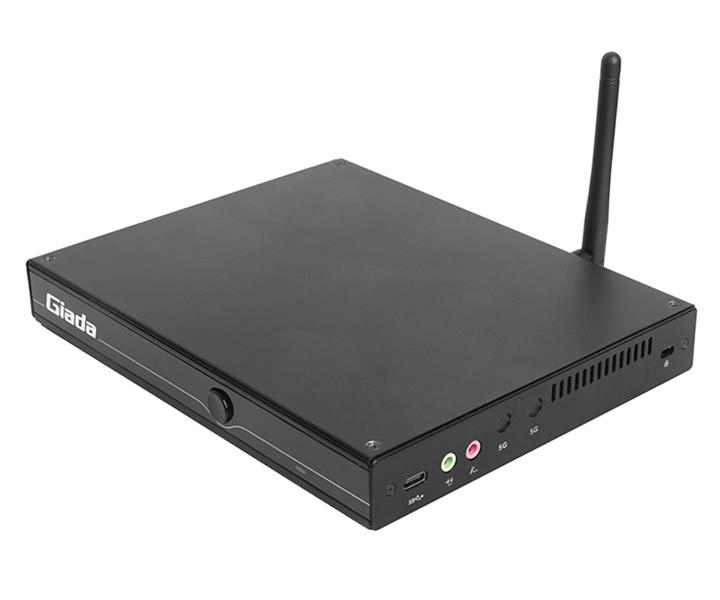

Giada D611
Tiger Lake UP3 High-end Digital Signage Player.
Belangrijkste eigenschappen
- 1 x DP, 2 x HDMI, ondersteuning voor 8K-weergave
- 2 x SO-DIMM DDR4-geheugen, tot 32 GB
- 1 x M-sleutel M.2 (2242/2280) voor SSD
- Ondersteunt RJ45, WiFi 6 (CNVi), 3G/4G/5G Ethernet-toegang
Specificaties
Processor
CPU: Intel?Core? i3-1115G7
Chipset: SoC
BIOS: AMI Source Code
Memory
Type: DDR4-3200MHz
Socket: 2 x SO-DIMM
Max Size: 32GB
Graphics
GPU: Intel? 11th UHD Graphics
Graphic Engine: DirectX 12, OpenGL 4.5, OpenCL 2.2 8K60 12b 4:2:0 HEVC/VP9/SCC

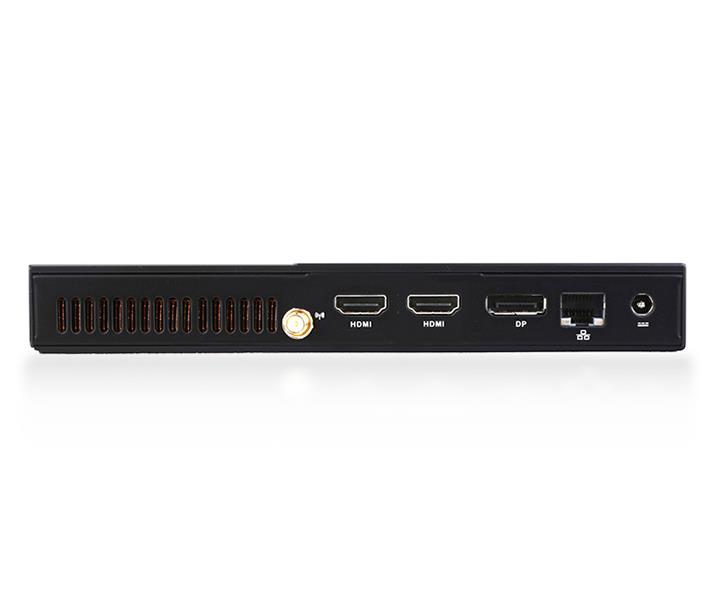

Interface: 1 x DP (Max.7680 x 4320 @60Hz), 1 x HDMI (Max.4096x2304 @60Hz), 1 x HDMI (Max.4096x2304 @60Hz)
Network
Controller: 1 x RTL 8111G Gigabit Ethernet
Interface: 1 x RJ45
I/O

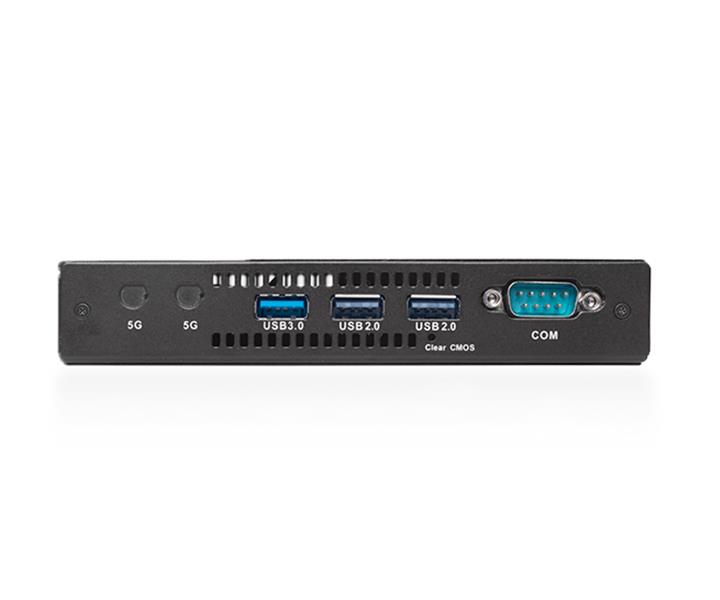

USB: 1 x USB3.2 Gen2, 2 x USB2.0
Serial Port: 1 x RS232
Audio: 1 x MIC-IN, 1 x AUDIO-OUT
Wireless: 1 x E-key M.2 (2230) for WiFi/BT, 1 x B-key M.2 (3052) for 3G/4G/5G
MiniPCIe: 1 x Full-size Mini-PCIe for mSATA/WiFi/3G/4G
SIM Card: 1 x SIM-Slot
TPM: Infineon TPM 2.0
JAHC
WatchDog Timer: 0~255 Second Time Out Support
Auto Power On: Power Activated Automatically Start
IR remote Control: By IR Controller for Power On
Storage
M.2: 1 x M-key M.2 (2242/2280) for NVMe
Operation System Supported
Windows: Windows 10 IoT Core
Linux: Support
Power
Power Type: DC-IN
Power Adapter: 12V/19V
Mechanical
Dimensions: 189.6 x 148.3 x 26 mm
Construction: Metal
Mounting: Desk/Wall Mounting and VESA Mounting Kit (JZ183)
Color: Black
Environment
Operating Temperature: 0?~40? (32 ?~104?) @ 0.7 m/s Air Flow
Relative Humidity: 95% @ 40? (non-condensing)
Certification
Certification: CE, FCC
License
The Adopted Trademarks HDMI,HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
