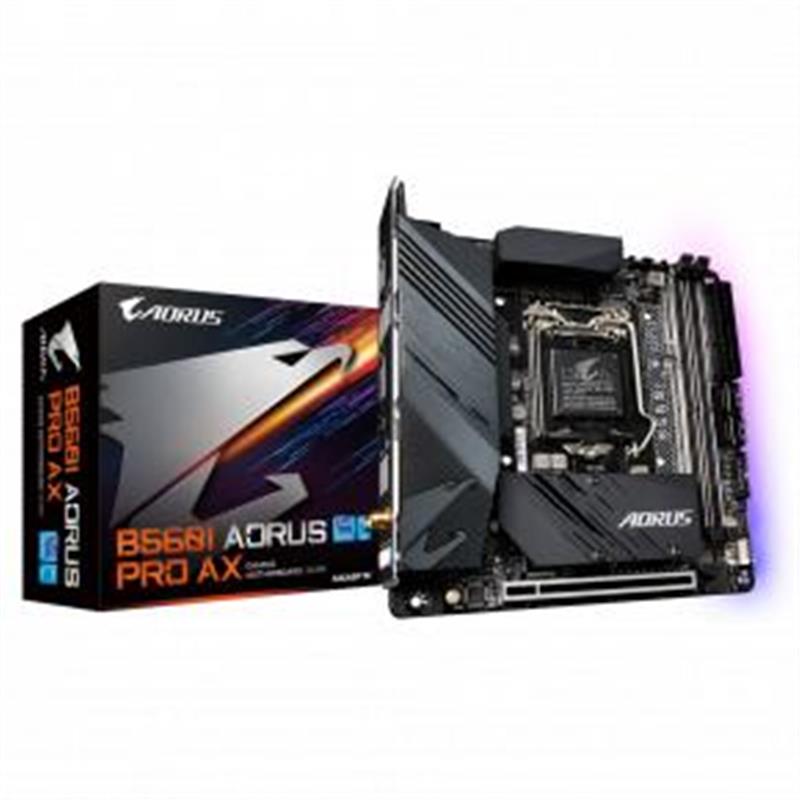

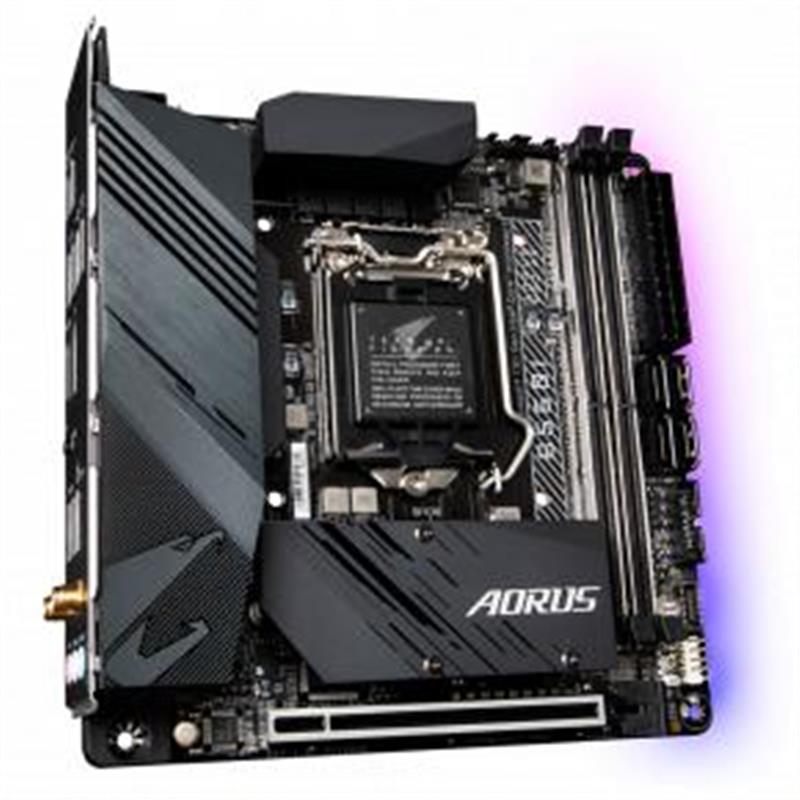

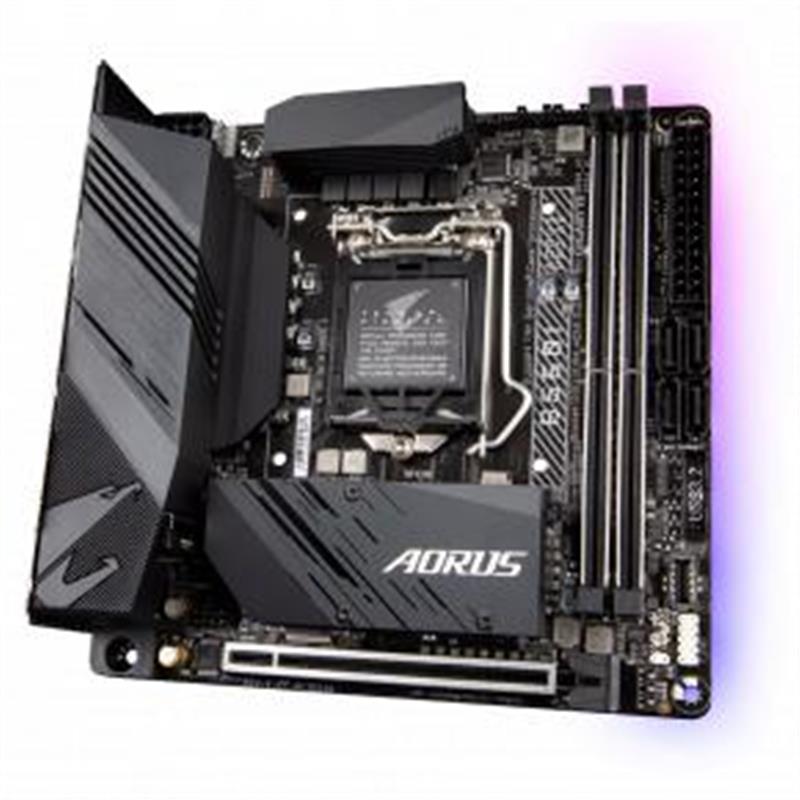

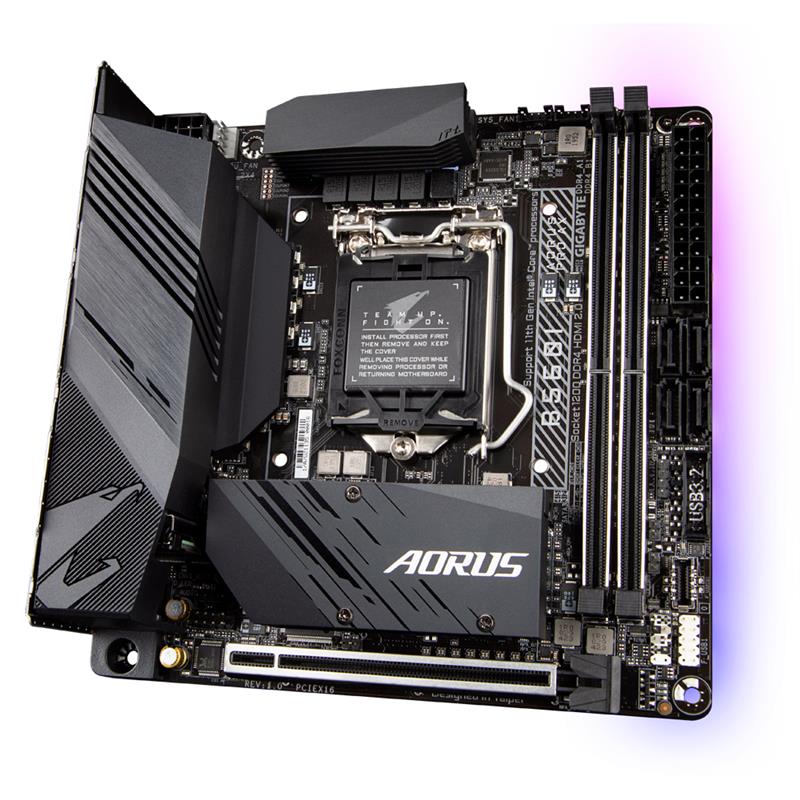

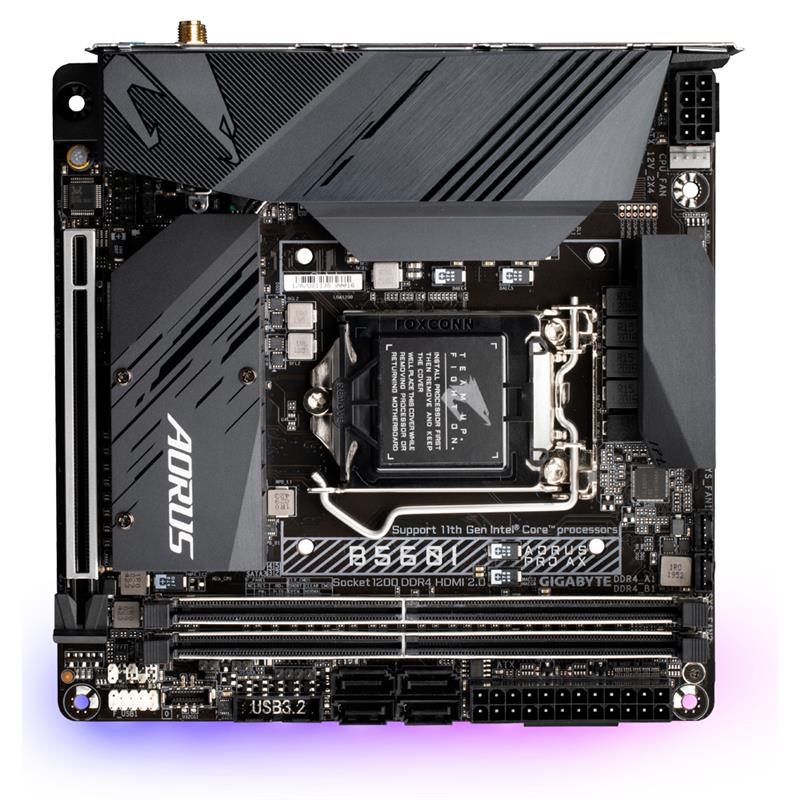

Beschrijving Gigabyte B560I AORUS PRO AX moederbord Intel B560 Express LGA 1200 mini ITX
Best Choice for Small but Powerful PC
B560I AORUS PRO AX is a mini-ITX motherboard perfect for building a small form factor PC for people who demands higher performance but also cares about aesthetics and size. The compact yet powerful pc delivers amazing performance with the latest 11th Gen CPU, ultra durable graphics card slot and blazing fast connectivity. It also equips with comprehensive thermal solution to keep it cool under heavy workload. Performance is not compromised by its size.
ULTIMATE POWER DESIGN
To fully support the latest 10th Gen ten- cores CPU, the B560I AORUS PRO AX is equipped with the ultimate power solution with the desired features: direct, digital and multiple phases. After countless experiments and tests, GIGABYTE presents the unbeatable B560I AORUS PRO AX for enthusiasts and gamers.
Direct 8+1 Phases Digital VRM Design solution with DrMOS
- Direct 50A Smart Power Stage- High Current Capacity MOSFET- Tantalum Polymer Capacitors Array- Higher Efficiency Lower Temperatures- Improved Transient ResponseB560I AORUS PRO AX motherboard uses an pure digital CPU power design which includes a digital PWM Controller with Smart Power Stages and is capable of providing 50A of power from each phase for a total of 400A. This 100% digital controller, new Tantalum Polymer Capacitors array, and Solid-pin CPU Power Connectors offer incredible precision and stability in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing professional worker and gamer to get the incredible high performance from the latest 11th Gen. Intel® Core™ processors.
Improved Transient Response
By using brand new VRM design and Tantalum Polymer Capacitor Array, Z590 AORUS motherboard transient response and stability is highly improved under overclocking and heavy loading condition.
PERFORMANCE
With the best quality components and GIGABYTE R&D design capability, the B560 AORUS is a true beast among motherboards.
Shielded Memory Routing
All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.
Dual PCIe Gen4/Gen3 x4 M.2
AORUS motherboards offer the industry's best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. Upgrade with the latest 2nd generation Gen4 SSD, the performance is up to 7000MB/s which is up to 2x faster than PCIe3.0 SSD.
ADVANCED THERMAL SOLUTION
The comprehensive solution delivers excellent heat dissipation. The AORUS motherboard stays cool on VRMs and M.2 SSD when heavy loading, making it most suitable for enthusiasts, overclockers and professional gamers.
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
High Current Support
Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current ProtectionPrecision Control
Up to 7 temperature/fan speed control points for precise fan curveDual Curve Mode
Slope/Stair dual mode for different user scenario
Smart Fan 6 BIOS UIImprove fan curve UI
We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.Slope/Stair dual graph mode
Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.Manual Input
For advanced users, we provide fan speed manual input for more precise control.EZ Tuning
Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.Fan curve profile
Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.
Intel 2.5GbE LAN Onboard2X Faster than ever
- Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.- Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 ethernet
New Introduce Intel® WiFi 6 802.11ax + BT 5 Module
Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
Benefit of WIFI 6 :
- 5.5X throughput than 802.11ac 1x1- 4X better network capacity, no traffic jams especially in those dense area with lots of devices- Network efficiency increase for better user experience
HDMI 2.0 for 4K UHD Display and HDCP 2.2 supported
HDMI 2.0, which is backwards compatible with HDMI 1.4, offers 18 Gb/s of bandwidth – nearly twice that of the previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), offering the best visual experience for viewers.
USB Type-C® Front Panel Connector
Equipped with next generation connectivity AORUS Motherboards already support the chassis of the future. The onboard USB Type-C® header for USB 3.2 Gen1 makes access convenient when connecting a USB 3.2 Gen1 drive or charging your new mobile device.
High Quality Onboard Audio Design
Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.
DEFINITIVE AESTHETICS
B560I AORUS PRO AX features RGB FUSION 2.0 and offers users the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make their PC more unique and stylish.
Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.
GIGABYTE RGB Fusion APP
Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.
ULTRA DURABLE
GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the B560 AORUS motherboard and reinforce every slot to make each of them solid and durable.
Q-Flash PlusUpdate the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
Ultra Durableâ„¢ PCIe ArmorIndustry Leading Ultra Durableâ„¢ PCIe Armor
The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
Solid Pin Power Connectors
AORUS motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.Solid Pin Power connector advantages
- Larger contact area for electricity- More metal quantity to sustain higher power and generated heat- Ultra durable and longer lifespan
GIGABYTE BIOS & APP CENTER
Good software goes hand in hand with perfect hardware. GIGABYTE motherboard bundled several useful and intuitive software to help users to control every aspect of motherboard.
BIOSNew User Interface
All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.My Favorites
Add constantly used items into the favorite menu for quick access.Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.
EasyTuneâ„¢
GIGABYTE's EasyTuneâ„¢ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior these are the possibilities of the System Information Viewer.
