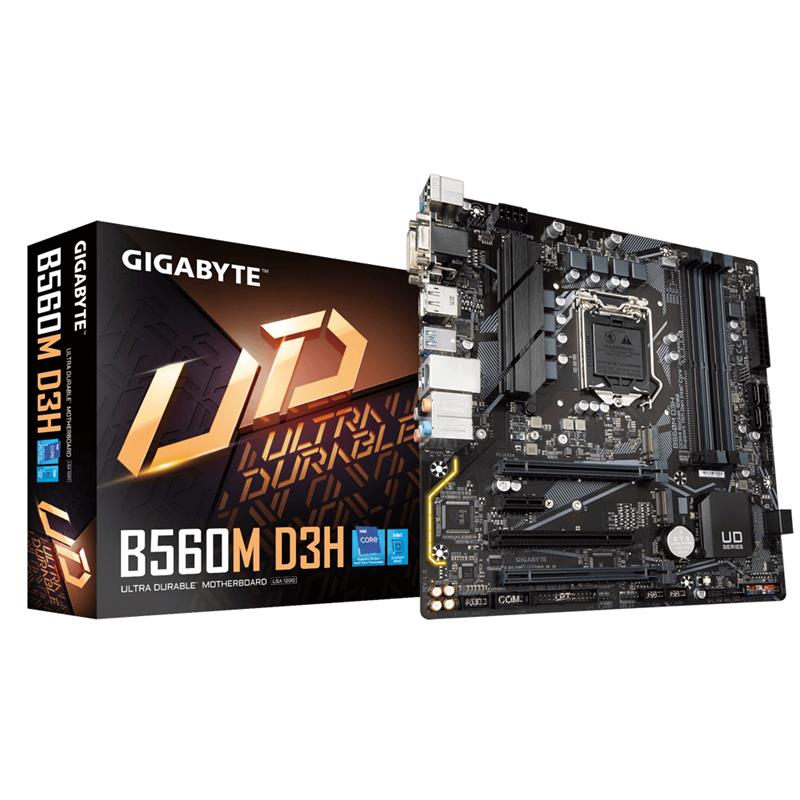

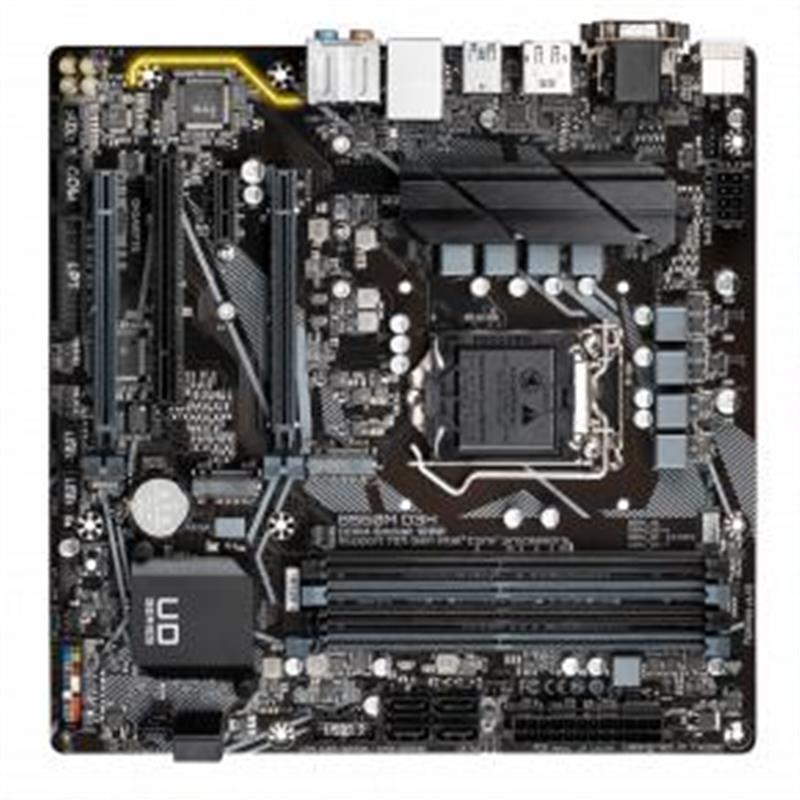

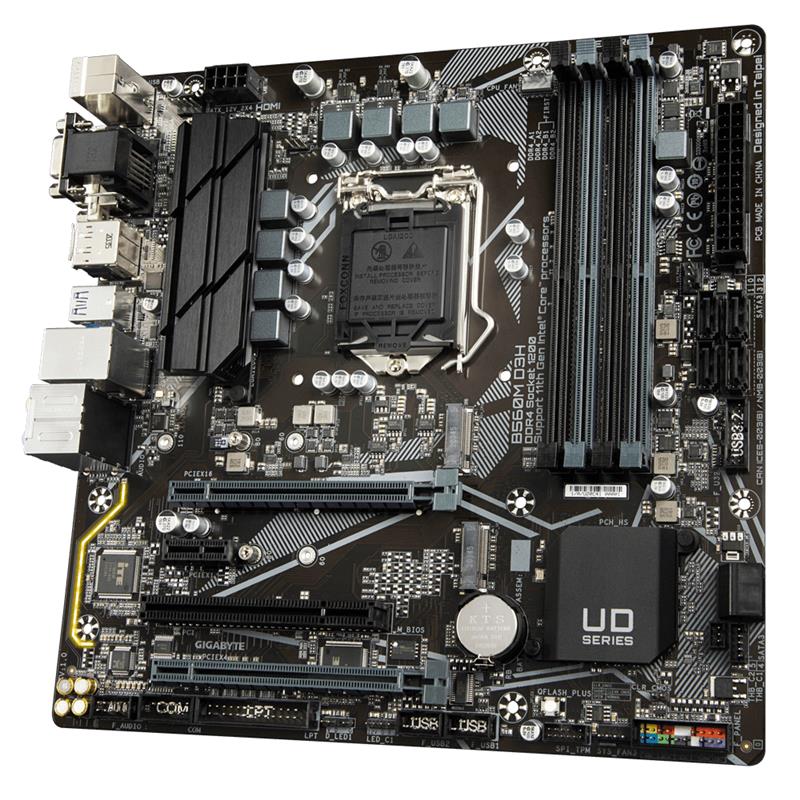

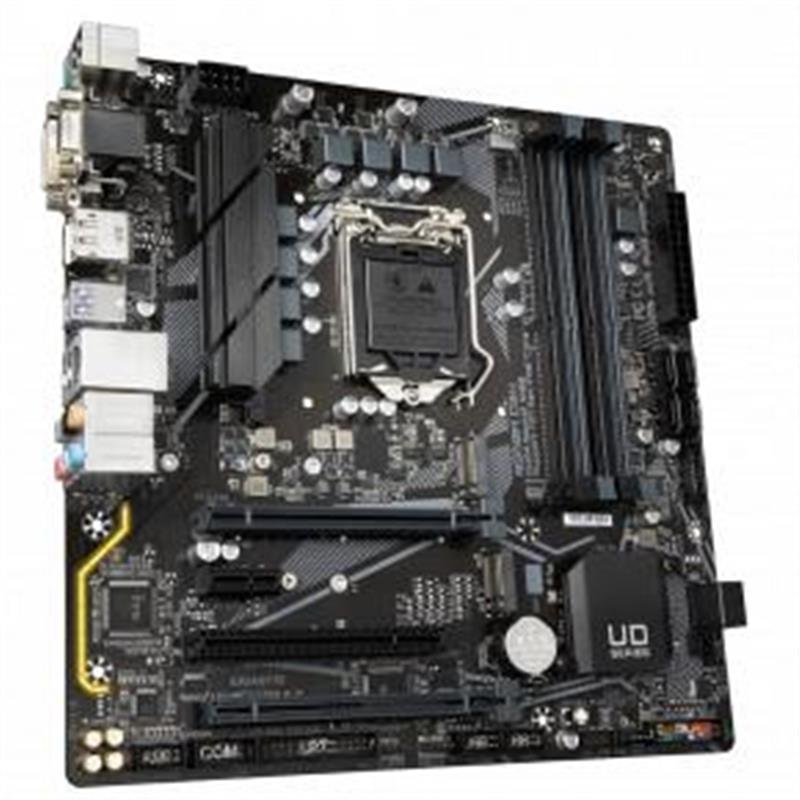

Gigabyte B560M D3H moederbord Intel B560 Express LGA 1200 micro ATX

Informatie

Levertijd
Op voorraad
Conditie
Nieuw
Voorraad
23

€ 144,90
Excl. btw: € 119,75

Beschrijving Gigabyte B560M D3H moederbord Intel B560 Express LGA 1200 micro ATX

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
- Digital PWM Controller to deliver appropriate voltage to the CPU.- Direct 6+2 Phases Low RDS(on) MOSFETs without PWM Doublers, each power phase connects directly to the CPU.- All-solid capacitors to improve transient response and minimize oscillation.- 8-pin Solid Pin CPU Power Connector.
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Cooling Features
- High Current SupportEach fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection- Precision ControlUp to 7 temperature/fan speed control points for precise fan curve- Dual Curve ModeSlope/Stair dual mode for different user scenario- Fan StopFan can stop completely below users' specified temperature point

Support for DDR4 XMP Up to 4600MHz and Beyond
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 4600MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.

High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Dual PCIe 4.0/3.0 x4 M.2 Connectors
GIGABYTE Ultra Durable Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their Systems’ potential.

Intel GbE LAN with cFosSpeed Internet Accelerator Networking
Intel GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Connecting the Future - USB Type-C
The World's Next Universal Connector Reversible USB Type-C with USB 3.2 Gen1The USB Type-C is a new reversible connector that is loaded with useful features such as USB 3.2 Gen1 support for 10Gb/s transfer speed. Powered by the Intel® USB 3.2 Gen1 controller, this little port provides the best USB Type-C experience possible.

High Definition Digital Outputs
Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.* Maximum support of 3 independent display at one time.

RGB FUSION 2.0
With B560 Motherboard, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on B560 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.
With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.

GIGABYTE RGB Fusion APP
Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.

Solid Pin Power Connectors
B560 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages
- Larger contact area for electricity- More metal quantity to sustain higher power and generated heat- Ultra durable and longer lifespan

Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

START SULFURIZATION PROTECTION
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

Refreshed BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.

EasyTune
GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior these are the possibilities of the System Information Viewer.

Specificaties Gigabyte B560M D3H moederbord Intel B560 Express LGA 1200 micro ATX

Processor
Intel
LGA 1200
Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium®
1
Geheugen
DDR4-SDRAM
4
128 GB
DIMM
Dual-channel
Ja
Ja
2133,2400,2666,2933,3000,3200 MHz
Ja
Opslag-controllers
M.2,SATA III
HDD & SSD
Grafisch
2-Way CrossFireX,Quad-GPU CrossFireX
4096 x 2304 Pixels
Ja
3
Interne aansluitingen
2
1
6
1
Ja
Ja
Ja
Ja
3
Ja
1
2
Ja
Ja

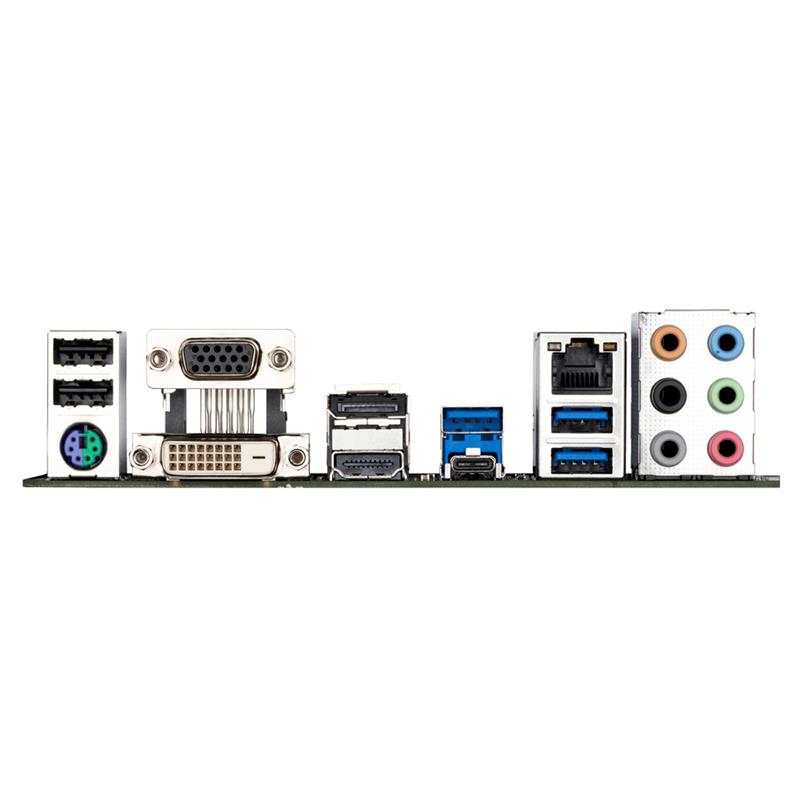

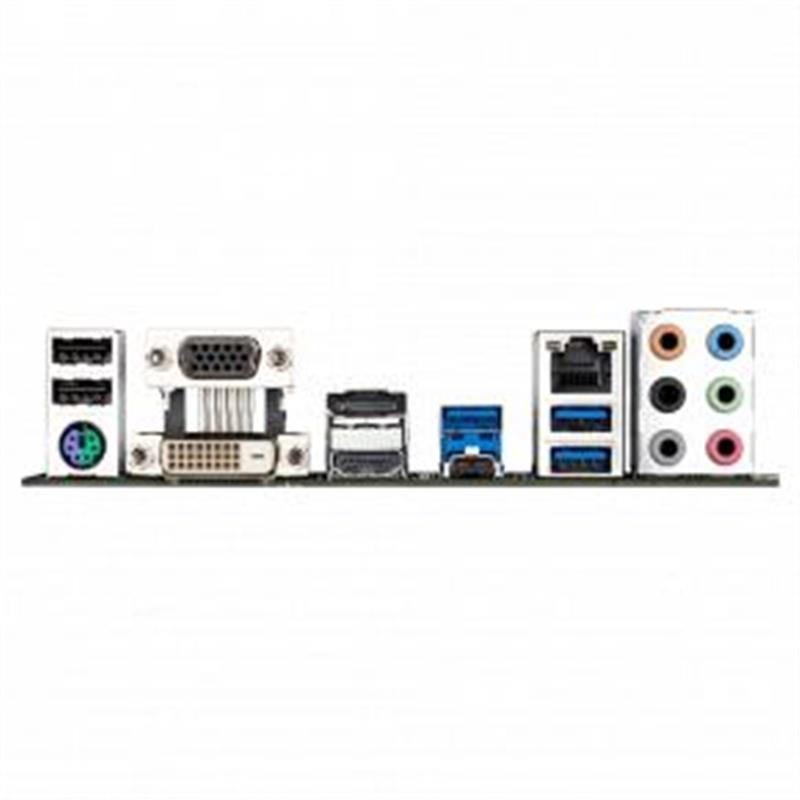

Aansluitingen achterzijde
2
3
1
1
1
1
1
1
1.4
1
1.2
Netwerk
Nee
Ja
Gigabit Ethernet
Kenmerken
PC
micro ATX
Intel
Intel B560 Express
7.1 kanalen
Ventilator, Temperatuur, Spanning
Windows 10 x64
Uitbreidingsmodules
2
1
2
BIOS
UEFI AMI
256 Mbit
5.0
Ja
2.7
2.7
Gewicht en omvang
244 mm
244 mm
Inhoud van de verpakking
SATA
Norton Internet Security\ncFosSpeed"

Algemene kenmerken

SKU
B560M D3H-rev
EAN
4719331817404
Merk
Gigabyte

Product kenmerken

Soort
Gaming
