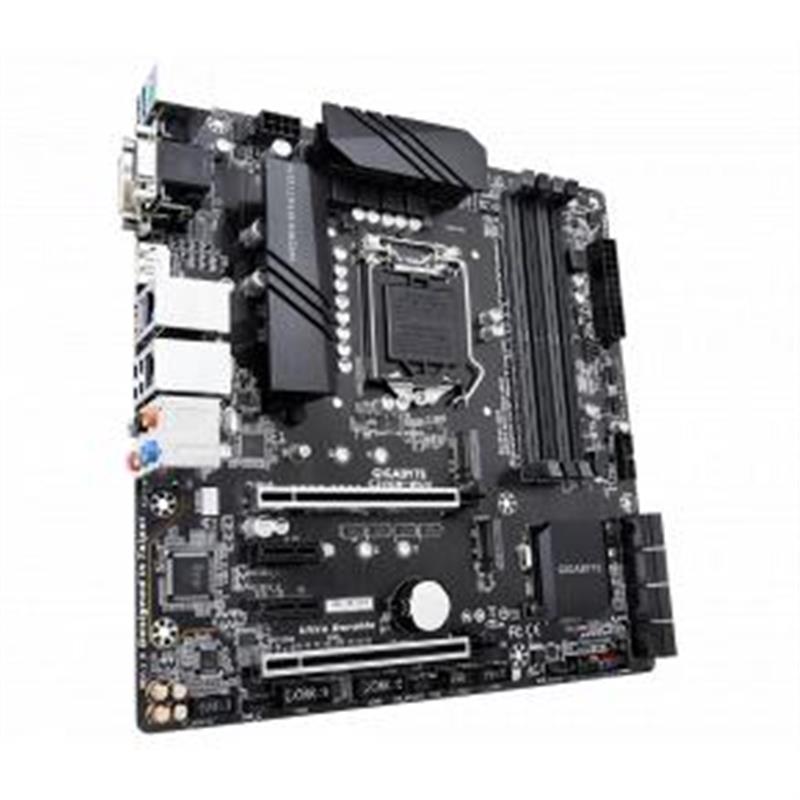

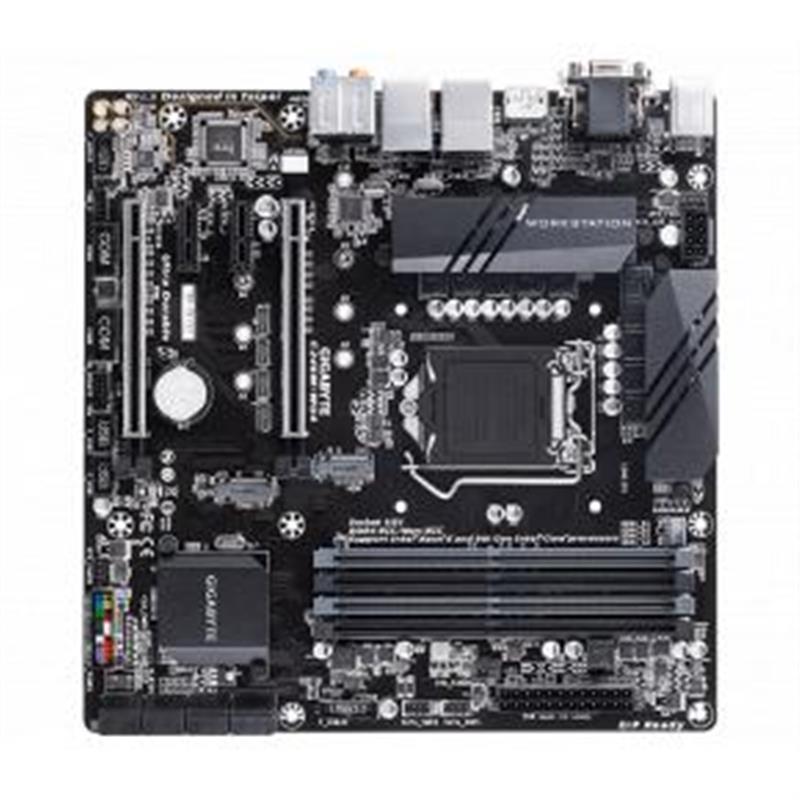

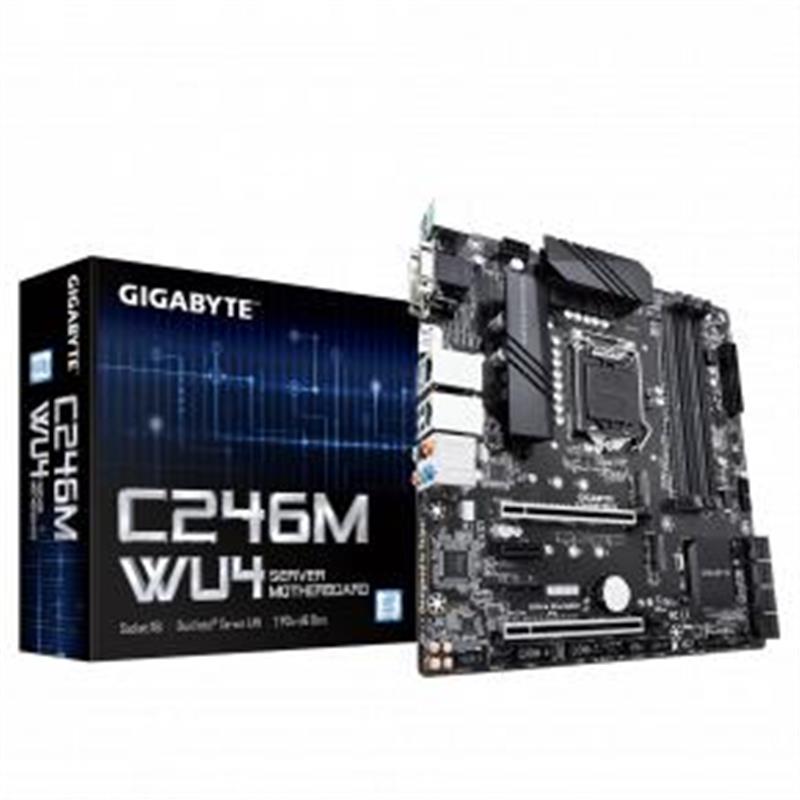

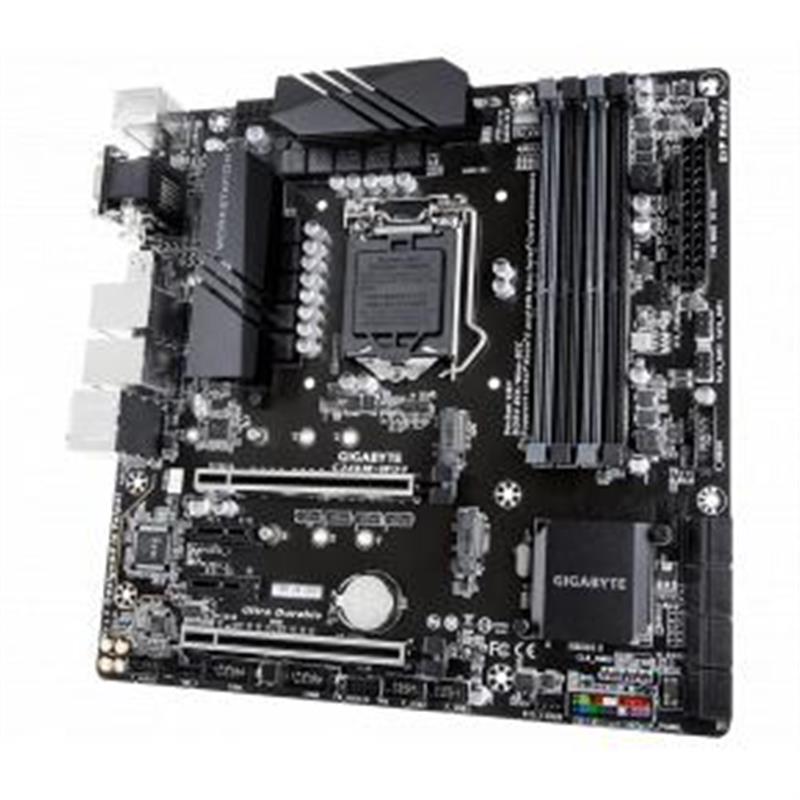

C246M-WU4 Gigabyte C246M-WU4 server-/werkstationmoederbord LGA 1151 (Socket H4) Micro ATX Intel C246 Express

Intel® Xeon® E processor and ECC memory
Supports Memory capacity up to 128GB.*
Intel® Xeon® E processor provides enhanced performance and capability.
Support for Error-Correcting Code (ECC) memory, it can eliminate small data discrepancies and prevent data corruption to ensure reliability for critical applications while helping to reduce system crashes.
* Support for 128GB capacity was required a BIOS update.

Broad DDR4 Compatibility with Support List of 1000+ DDR4 Validated
GIGABYTE partners very closely with memory vendors from around the world to ensure that modules offered by popular memory brands are compatible with GIGABYTE Motherboards. GIGABYTE has verified over 1000+ different modules to ensure performance in a GIGABYTE built system.

2 PCIe x16 slots for multi cards
Multi-graphics configurations offer better graphics performance for applications which demand the highest frame rates without compromising on resolution.

NVIDIA® QUADRO® Professional Graphics Supports
NVIDIA® QUADRO® 3D Workstation Professional Graphics Solutions are designed and built specifically for artists, designers, and engineers, NVIDIA Quadro GPUs power more than 100 professional applications across a broad range of industries. Professionals trust them to enable their best work using applications such as Adobe® Creative Cloud, Avid Media Composer, Autodesk Suites, Dassault Systemes, CATIA and SOLIDWORKS, Siemens NX, PTC Creo, and many more.

Large storage capacity: 8 SATA3 Ports
Sufficient SATA Ports for the mass storage requirement.

Dual M.2 for SSD
C246M-WU4 with dual M.2 connectors provides better upgradability for SSD devices. Delivering up to 32Gb/s transfer speed, the dual M.2 connectors provide an ideal storage solution with RAID modes.

Fast Onboard Storage with 32Gb/s M.2
GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interface for M.2 SSD devices.

The GIGABYTE C246 Platform supports Intel's latest Optane technology. Optane fuels storage performance by acting as a cache drive giving users a significant boost compared to traditional mechanical drives.

Dual Intel® Server GbE LAN with cFosSpeed Internet Accelerator Software
* cFosSpeed helps to improve network latency and maintain low ping times.
* Support Windows Server O/S
* Support Intel® vPro™ Technology
* Teaming Features
• Fault Tolerance
• Link Aggregation
• Load Balancing

USB 3.1 Gen 2 Type A
The latest USB 3.1 Gen 2 offers staggering 10Gb/s transfer speeds. 2x faster than USB 3.1 Gen 1 along with backwards compatibility with existing USB devices.

Supports up to Three Monitor Displays

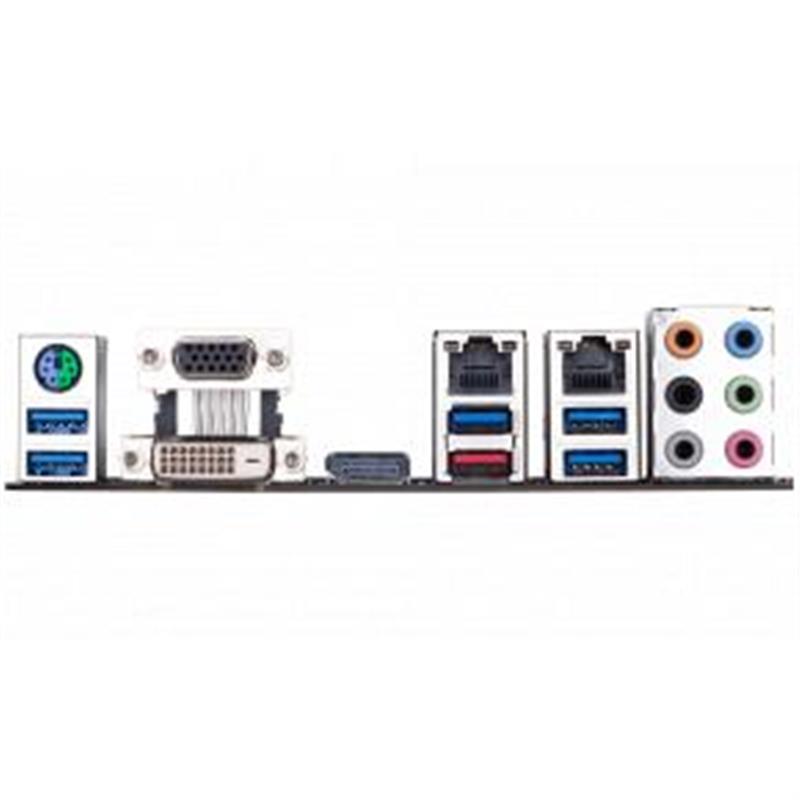

C246M-WU4 can connect up to three displays at the same time with onboard DVI-D, DisplayPort, and VGA connectivity. Displayport supports up to 4K UHD@60Hz.

Carefully Selected Components
GIGABYTE's passive components are meticulously selected to guarantee a super stable operating environment and allow the processors and the memory to deliver their maximum performance. With some of the longest service lifetimes in the industry, our server motherboards build on 30 years' company-wide experience in motherboard design to attain the highest reliability levels.

Ultra Durableâ„¢ PCIe Armor
Industry Leading Ultra Durableâ„¢ PCIe Armor
The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

Easy to Install G Connector Design
The tiny cables of the front panel connectors can be hard to manipulate as space is restricted and indicators being tiny. With the G Connector, you can connect all the FP cables at once, simplifying the process of building your next PC and saving you some frustrations.

• Supports Intel®1151 Xeon® E Processors and 9th/8th Gen. Intel® Core™ / Pentium® / Celeron® Processors LGA1151
• Supports DDR4 ECC & Non-ECC Un-buffered memory
• 2 PCIe x16 Slots & 2 PCIe x1 Slots
• Dual Intel® Server GbE LAN support Intel® vPro Technology
• Large storage capacity: 8 SATA3 Ports
• Dual M.2 support Intel® Optane™ Memory
• Next-gen transfer speeds: USB 3.1 Type A connection
• Supports up to Three Monitor Displays
• Monitor HDDs status by SGPIO
