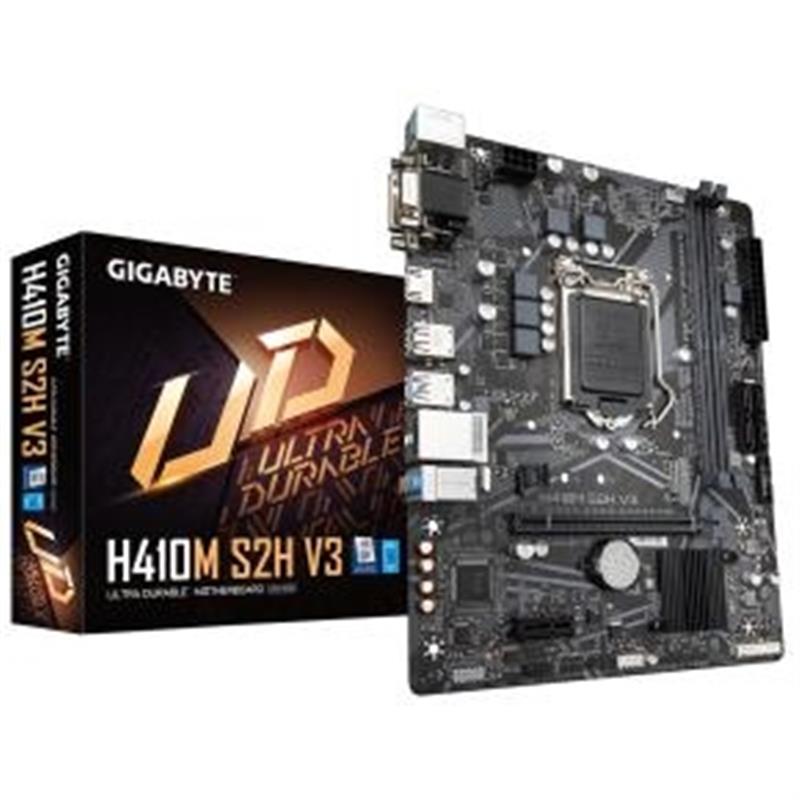

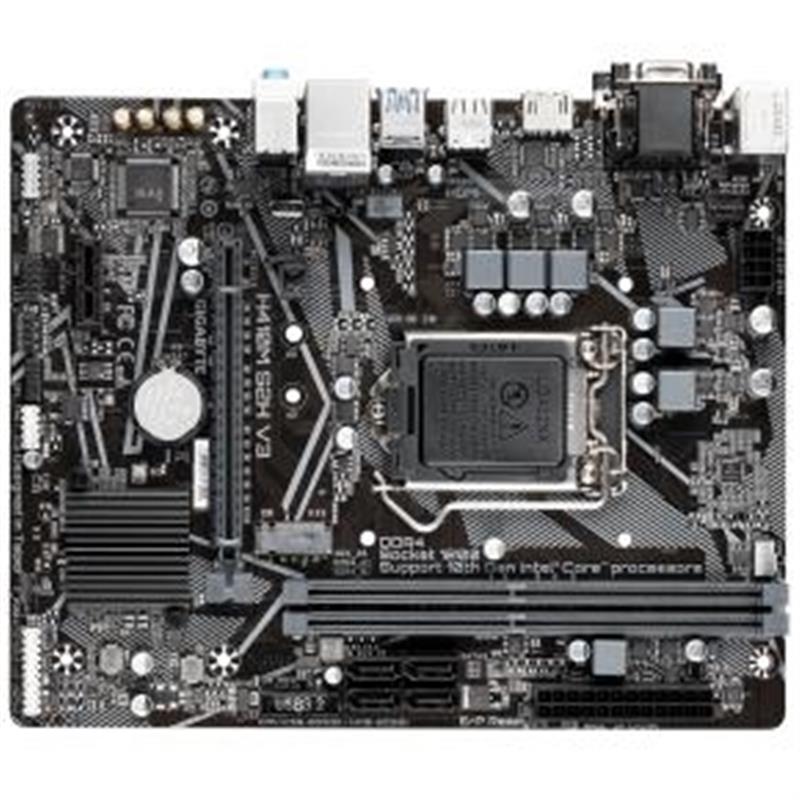

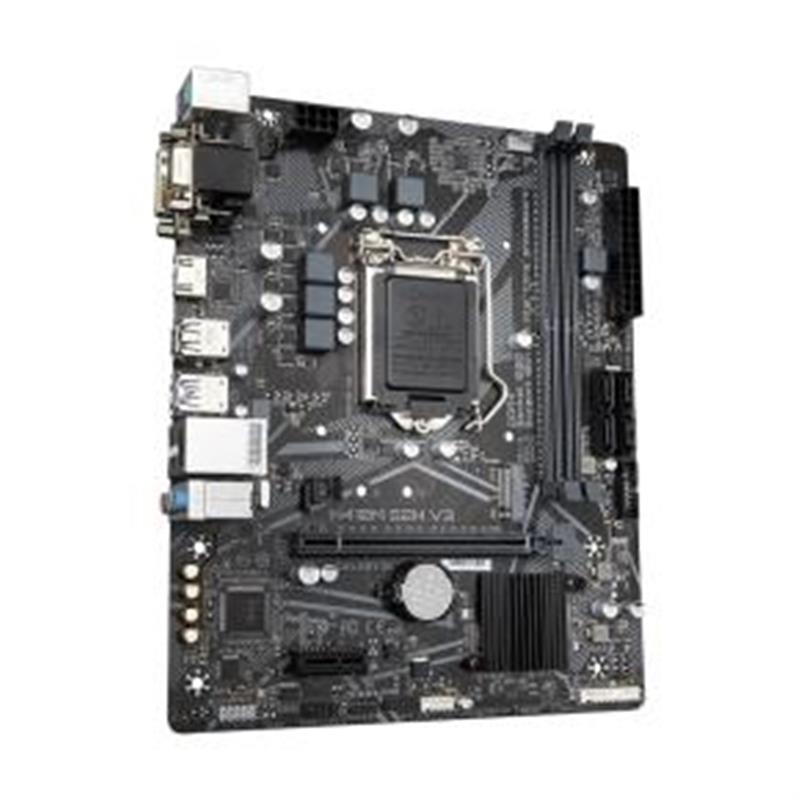

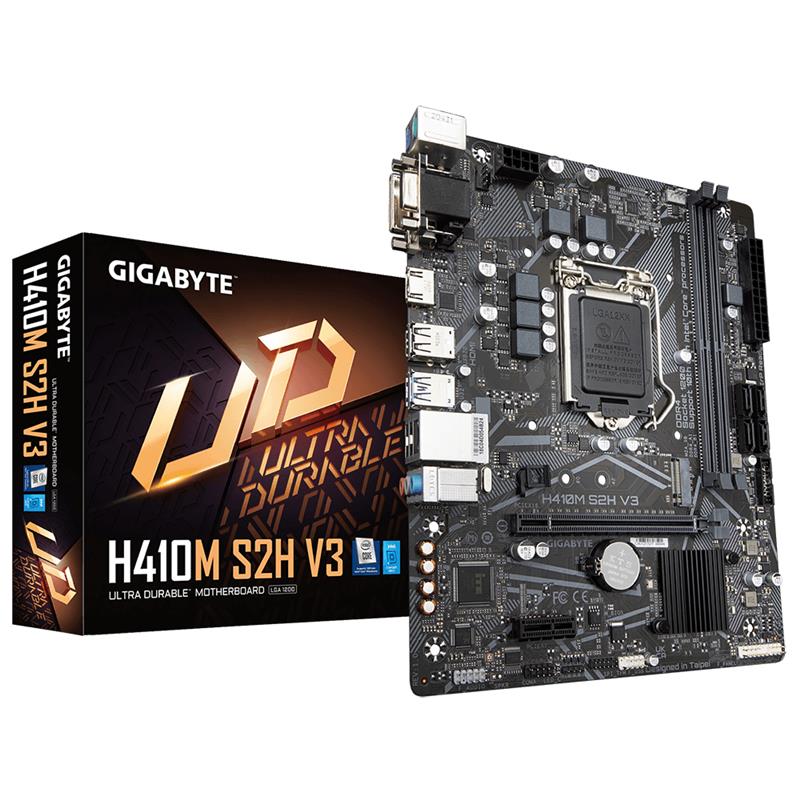

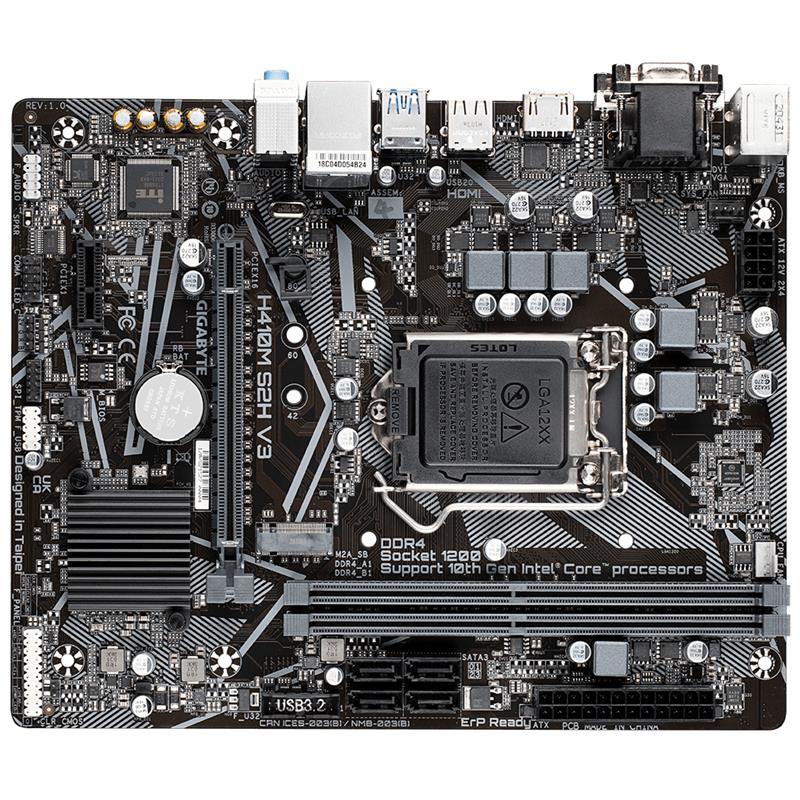

Gigabyte H410M S2H V3 moederbord Intel H510 LGA 1200 micro ATX

Informatie

Levertijd
Onbekend
Conditie
Nieuw
Voorraad
0

€ 95,08
Excl. btw: € 78,58
Niet op voorraad.

Beschrijving Gigabyte H410M S2H V3 moederbord Intel H510 LGA 1200 micro ATX

Gigabyte Intel® Ultra Durable Motherboard with GIGABYTE Gaming GbE LAN, PCIe Gen3 x4 M.2, HDMI / DVI-D/ D-Sub Ports for Multiple Display, Anti-Sulfur Resistor, Smart Fan 5
Main features
- Supports 10th Gen Intel® Core&trade Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 8-Channel HD Audio with High Quality Audio Capacitors
- NVMe PCIe Gen3 x4 2280 M.2 Connector
- GIGABYTE Gaming GbE LAN with Bandwidth Management
- HDMI /DVI-D/D-Sub Ports for Multiple Display
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design

Specifications
CPU
- Support for 10th Generation Intel® Core&trade i9 processors/Intel® Core&trade i7 processors/ Intel® Core&trade i5 processors/Intel® Core&trade i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1200 package
- L3 cache varies with CPU
(Please refer to CPU Support Listfor more information.)

Chipset
Intel® H510 Express Chipset

Memory
- Intel® Core&trade i9/i7 processors:
- Support for DDR4 2933/2666/2400/2133 MHz memory modules
- Intel® Core&trade i5/i3/Pentium®/Celeron® processors:
- Support for DDR4 2666/2400/2133 MHz memory modules
- 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Please refer Memory Support Listfor more information.)

Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
-1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
- Maximum shared memory of 512 MB
(Graphics specifications may vary depending on CPU support.)

Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTEs website for details on configuring the audio software.

LAN
- Gigabit Ethernet Chip (1 Gbps/100 Mbps)

Expansion Slots
- 1 x PCI Express x16 slot, running at x16
- 1 x PCI Express x1 slot
(The PCI Express slots conform to PCI Express 3.0 standard.)

Storage Interface
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors

USB
Chipset:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 1 x system fan header
- 1 x RGB LED strip header
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x serial port header
- 1 x Clear CMOS jumper
* All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

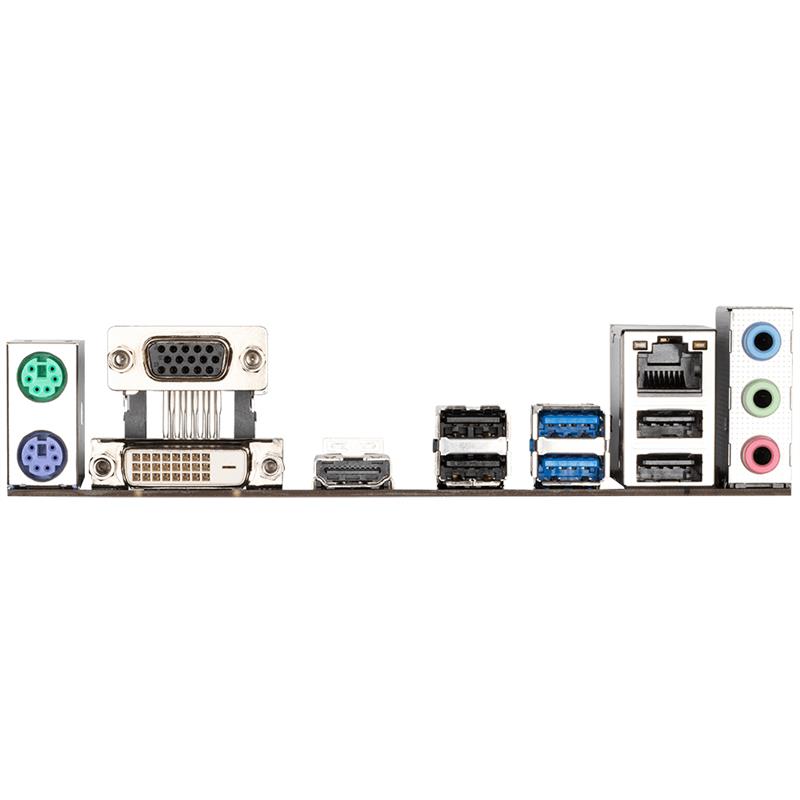

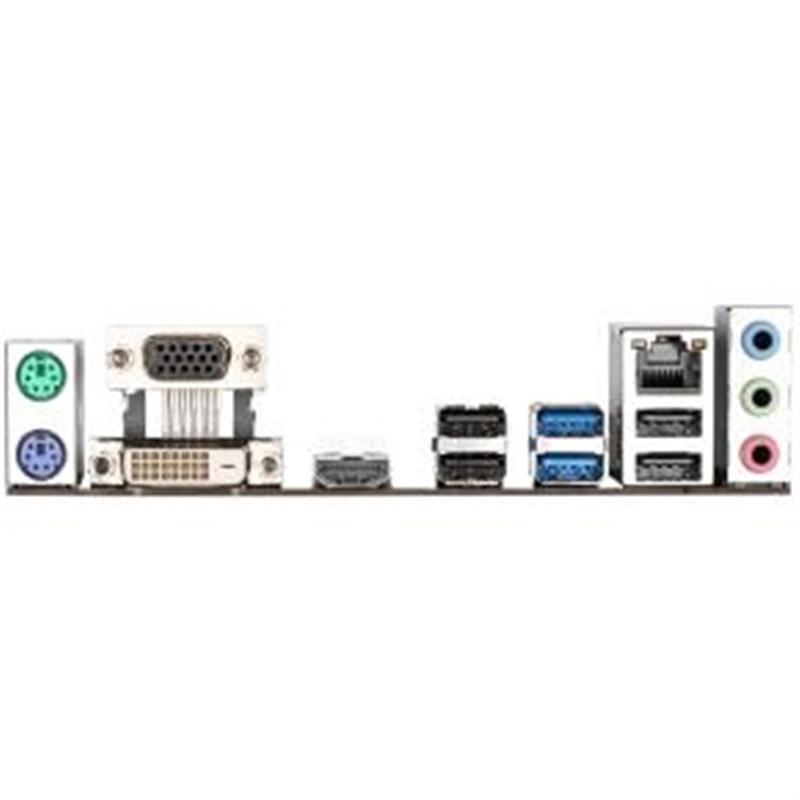

Back Panel Connectors
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x D-Sub port
- 1 x DVI-D port
- 1 x HDMI port
- 2 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks

I/O Controller
- iTE® I/O Controller Chip

H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- @BIOS
- Ambient LED
- EasyTune
- Fast Boot
- Game Boost
- ON/OFF Charge
- Smart Backup
- System Information Viewer
- Support for Q-Flash
- Support for Xpress Install

Bundled Software
- Norton® Internet Security (OEM version)
- Realtek® 8118 Gaming LAN Bandwidth Control Utility

Operating System
- Support for Windows 10 64-bit

Form Factor
- Micro ATX Form Factor 22.6cm x 18.5cm

Specificaties Gigabyte H410M S2H V3 moederbord Intel H510 LGA 1200 micro ATX

Processor
Intel
LGA 1200
Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel Core i9
Geheugen
DDR4-SDRAM
2
64 GB
DIMM
Dual-channel
Ja
Ja
2133,2400,2666 MHz
2GB, 4GB, 8GB, 16GB, 32GB
Opslag-controllers
M.2,SATA
Grafisch
Intel® HD Graphics
Interne aansluitingen
2
2
4
Ja
Ja
1
Aansluitingen achterzijde
4
2
1
1
1
1
2
1.4
3
Netwerk
Ja
Gigabit Ethernet
Kenmerken
PC
micro ATX
Intel
Intel H510
7.1 kanalen
Ventilator, Temperatuur, Spanning
Uitbreidingsmodules
1
1
1
BIOS
UEFI AMI
256 Mbit
5.0
2.7
Gewicht en omvang
226 mm
185 mm"

Algemene kenmerken

SKU
H410M S2H V3-rev
EAN
4719331823535
Merk
Gigabyte

Product kenmerken

Soort
Gaming
