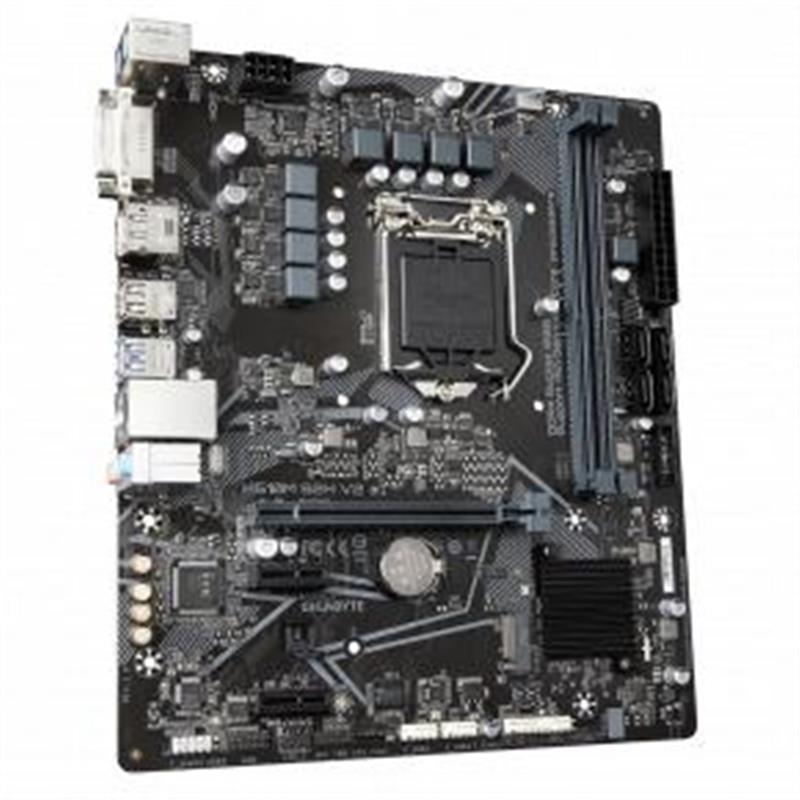

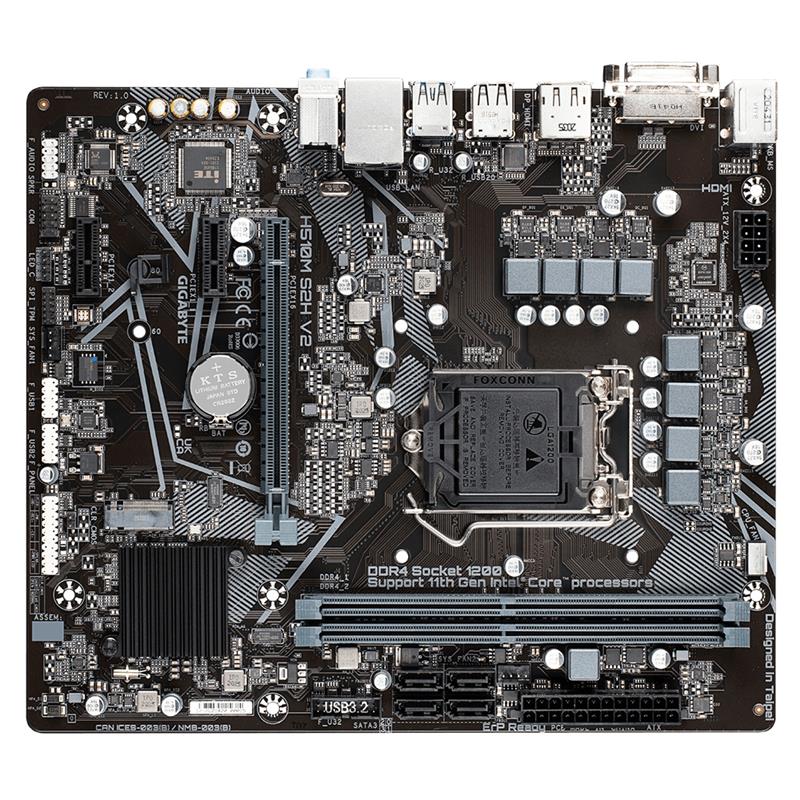

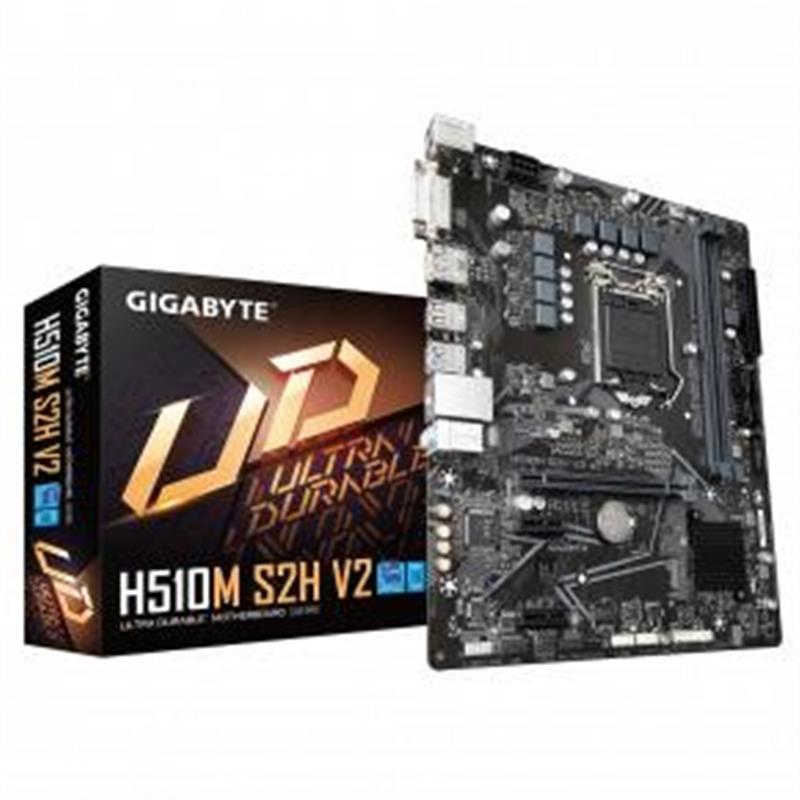

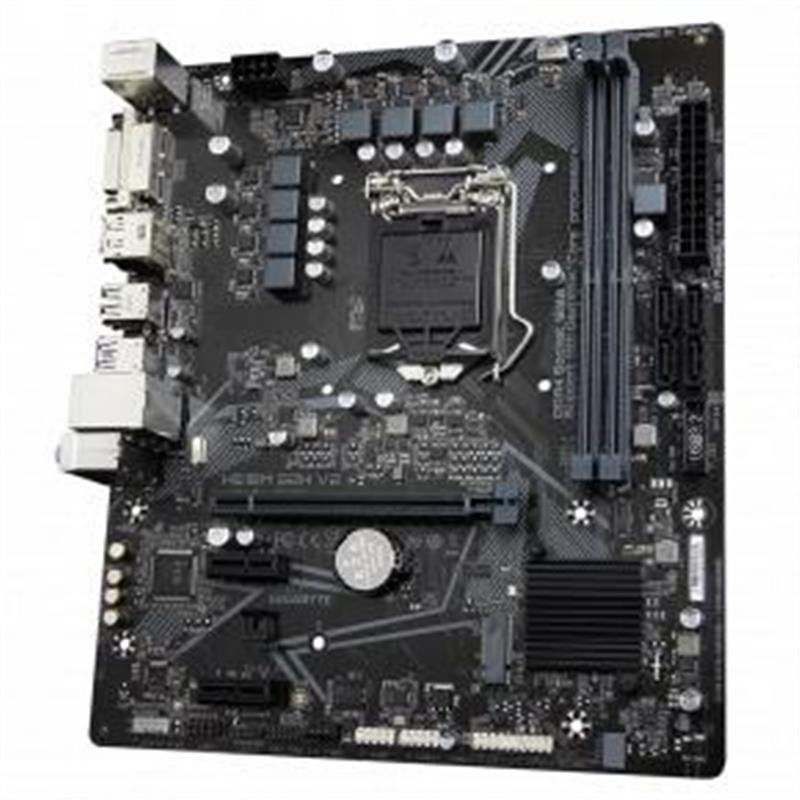

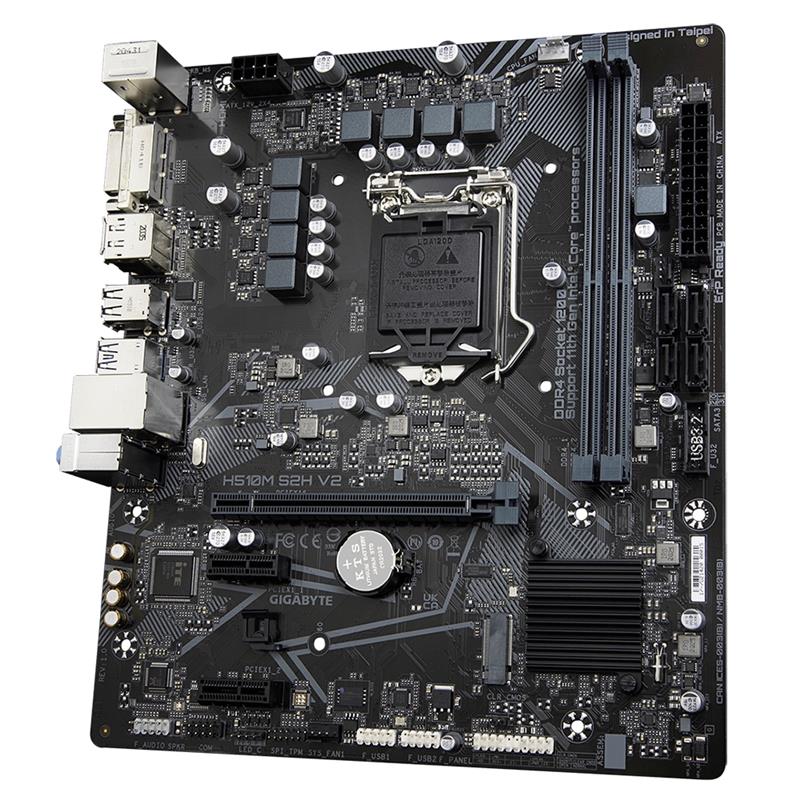

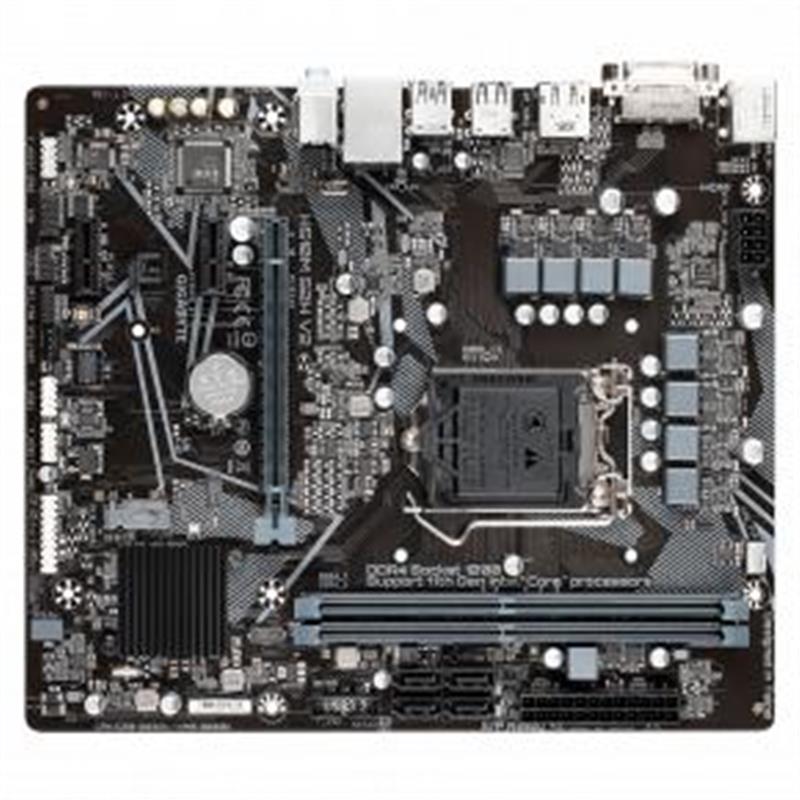

H510M S2H V2 Gigabyte mATX Intel LGA1200 2x DIMM DDR4 3200 Mhz M 2 USB3 2 Gen 1

Informatie

Levertijd
Onbekend
Conditie
Nieuw
Voorraad
0
Product momenteel niet beschikbaar

Beschrijving Gigabyte mATX Intel LGA1200 2x DIMM DDR4 3200 Mhz M 2 USB3 2 Gen 1

POWER6+2 Phases Hybrid Power DesignCleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
- 6+2 Phases Low RDS(on) MOSFETs- Solid capacitors to improve transient response and minimize oscillation.- 8-pin Solid Pin CPU Power Connector.

PERFORMANCE
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Cooling FeaturesHigh Current Support
Each fan headers support PWM and DC fan and Water cooling Pump, and up to 24W (12V x 2A) with Over-Current ProtectionPrecision Control
Up to 7 temperature/fan speed control points for precise fan curve

Smart Fan 6 BIOS UIImprove fan curve UI
We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.Slope/Stair dual graph mode
Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.Manual Input
For advanced users, we provide fan speed manual input for more precise control.EZ Tuning
Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.Fan curve profile
Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.

Single 32GB Support
The maximum memory capacity on the H510 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 64GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.

High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

CONNECTIVITYExclusive Realtek 8118 Gaming LANHigh Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

NVMe PCIe Gen3 x4 2280 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

High Definition Digital Outputs
Enjoy true HD display capability using the most commonly integrated digital output technologies on today's HD displays and TVs.

ULTRA DURABLESolid Pin Power Connectors
H510 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages
- Larger contact area for electricity- More metal quantity to sustain higher power and generated heat- Ultra durable and longer lifespan

START SULFURIZATION PROTECTION
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

SOFTWAREBIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.

EasyTuneâ„¢
GIGABYTE's EasyTuneâ„¢ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior these are the possibilities of the System Information Viewer.

Specificaties Gigabyte mATX Intel LGA1200 2x DIMM DDR4 3200 Mhz M 2 USB3 2 Gen 1

Processor
Intel
LGA 1200
Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium®
LGA 1200 (Socket H5)
Geheugen
DDR4-SDRAM
2
64 GB
DIMM
Dual-channel
Ja
Ja
2133,2400,2666,2933,3000,3200 MHz
Ja
Opslag-controllers
M.2,PCI Express 3.0,SATA III
HDD & SSD
5
Grafisch
Niet ondersteund
4096 x 2304 Pixels
Ja
2
Interne aansluitingen
2
1
4
Ja
Ja
Ja
Ja
2
Ja
Ja
1
Ja
Ja

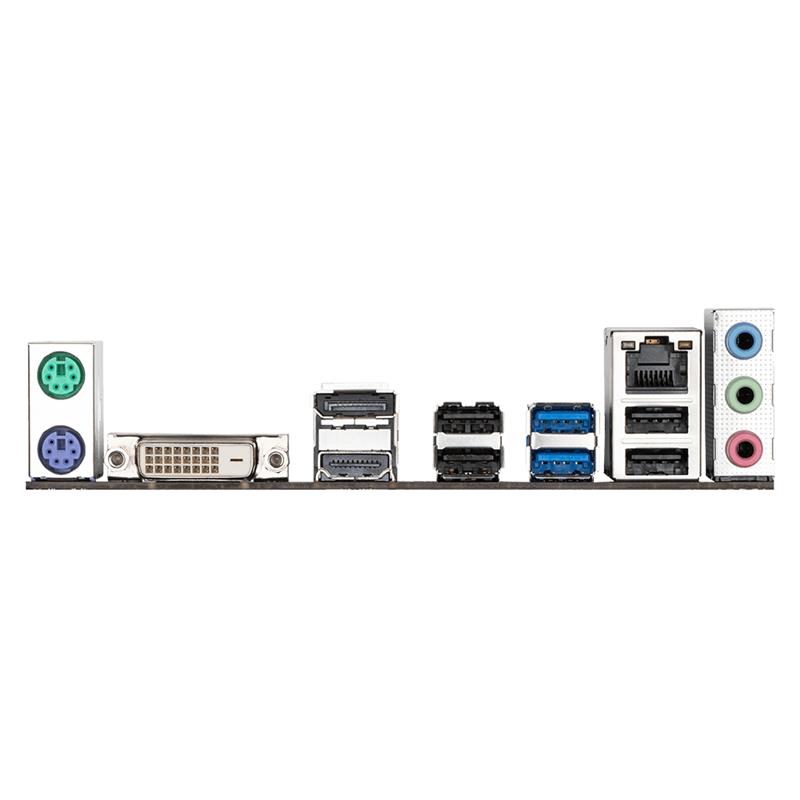

Aansluitingen achterzijde
4
2
1
1
1
2
1.4
1
1.2
3
Ja
USB Type-A
Netwerk
Nee
Ja
Gigabit Ethernet
Kenmerken
PC
micro ATX
Intel
Intel H510 Express
7.1 kanalen
Ventilator, Temperatuur, Spanning
Windows 10 x64
Uitbreidingsmodules
2
1
1
BIOS
UEFI AMI
256 Mbit
5.0
Ja
2.7
2.7
Gewicht en omvang
244 mm
210 mm
Inhoud van de verpakking
SATA
Ja"

Algemene kenmerken

SKU
H510M S2H V2-rev
EAN
4719331823757
Merk
Gigabyte

Product kenmerken

Product afbeelding
Ja
Soort
Gaming
